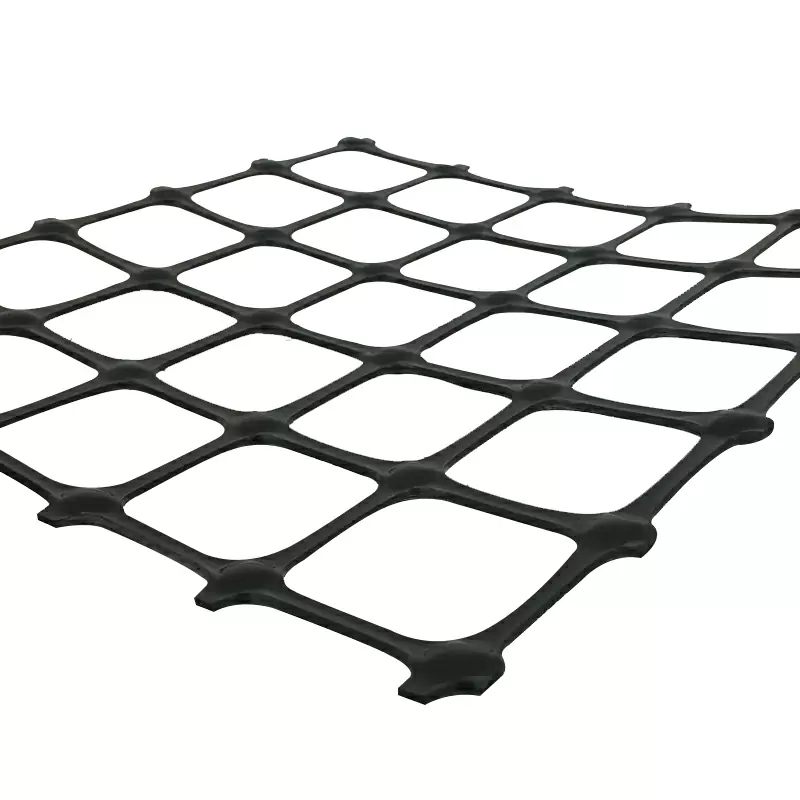

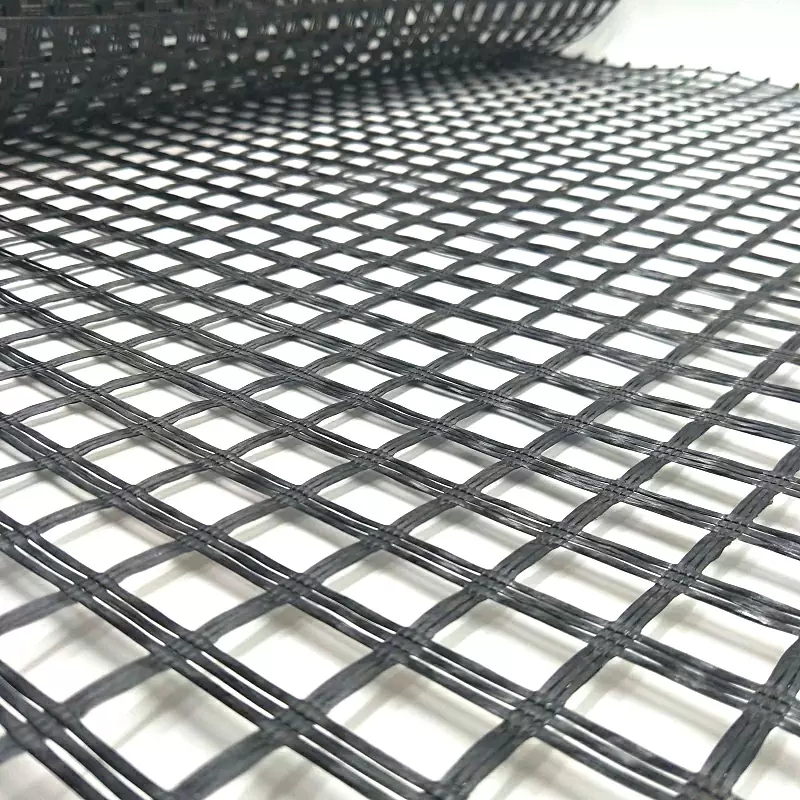

Plastic Mesh Grid Polypropylene PP Biaxial Geogrid for Road Soil Stabilizer
Polyester Geogrid Features
1.High strength,high modulus and low elongation.
2.Aging resistance and high tensile strength.
3.Pre-designed and easily combing with grave and soil.
Phone : +86 13386403495
Email : sales@drgeomembrane.com
Whatsapp : +86 13386403495
Product Description

Industry-specific attributes


  Warranty

  5 Year

  After-sale Service

  Online technical support

  Project Solution Capability

  graphic design, total solution for projects, Others

  Application

  Road construction

  Design Style

  Industrial


Other attributes


  Place of Ongin  China
  Type  Geogrids
  Brand Name  Dingrun
  Product Name  PP Biaxial Geogrd
  Material  Plastic PP
  Color  Black
  Tensile strength  25Kn/m--300Kn/m
  Width  1-6m
  MESH SIZE  12.7*12.7mm. 25.4*25.4mm

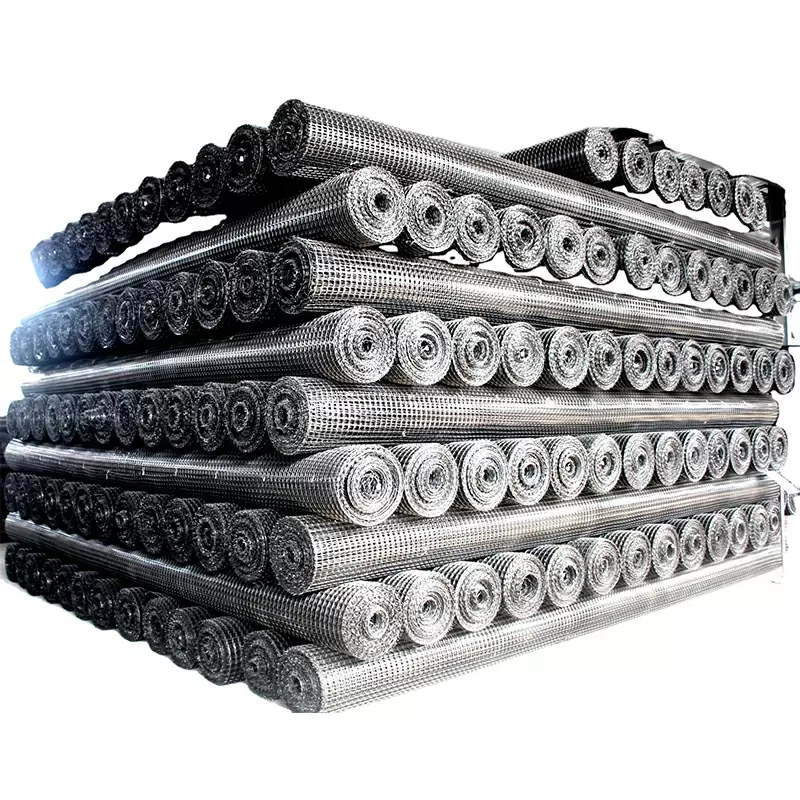

  Length  50-100m
  Keyword  Biaxial Geogrid
  Application  Soft Soil Reinforcement


Specification


  Specifications /item

  TGSG 15-15  TGSG 20-20  TGSG 30-30  TGSG 40-40  TGSG 45-45
  Roll width(m)  4(+0.20)

  Each longitudinal tensile yield

  strength (KN / m)

  15  20  30  40  45

  Each horzontal tensile yield

  strength(KN / m)

  15  20  30  40  45
  Vertical yield elongation(%)≤  13
  Horzontal yield elongation(%)≤  16

  Longitudinal elongation of 2% when

  the stretching force(KN / m)≥

  5  8  11  13  16

  Horizontal elongation rate of 2

  percent of the stretching force

  (KN/m)≥

  7  10  13  15  20
  Vertical elongation of 5% when the         stretching force( KN / m )≥  8  10  15  16  25

  Horizontal elongation of 5% when

  the  stretching force( KN / m )≥

  10  13  15  20  22
  Width(m)  1-6
  Note  Special specific ations can be customized according to the contract


Applications

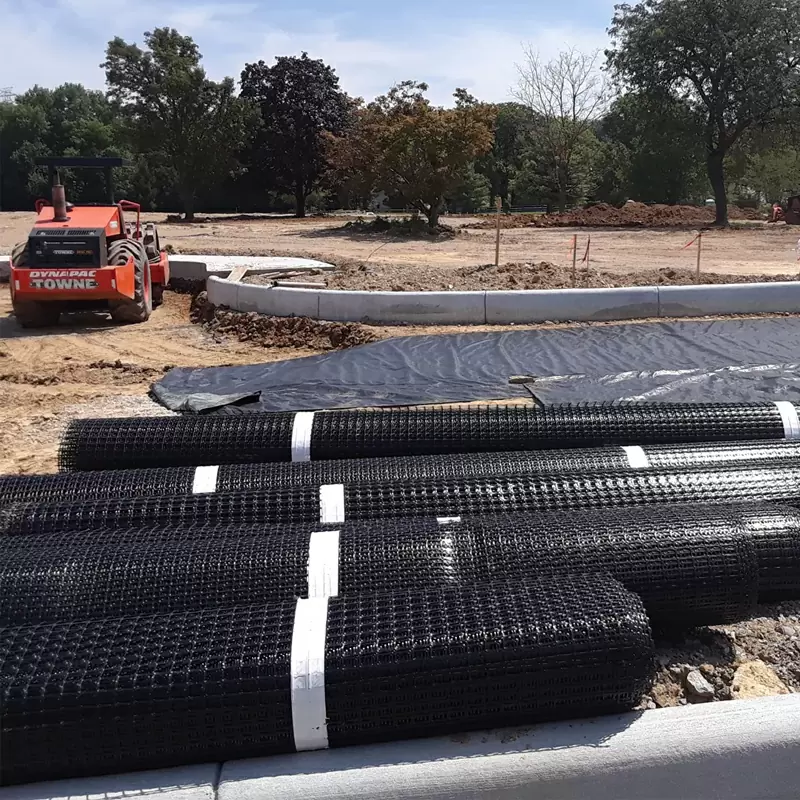

Surface reinforcement of road and airport.

Maintenance , reconstruction and widening of old road surface( asphalt pavement or concrete pavement )

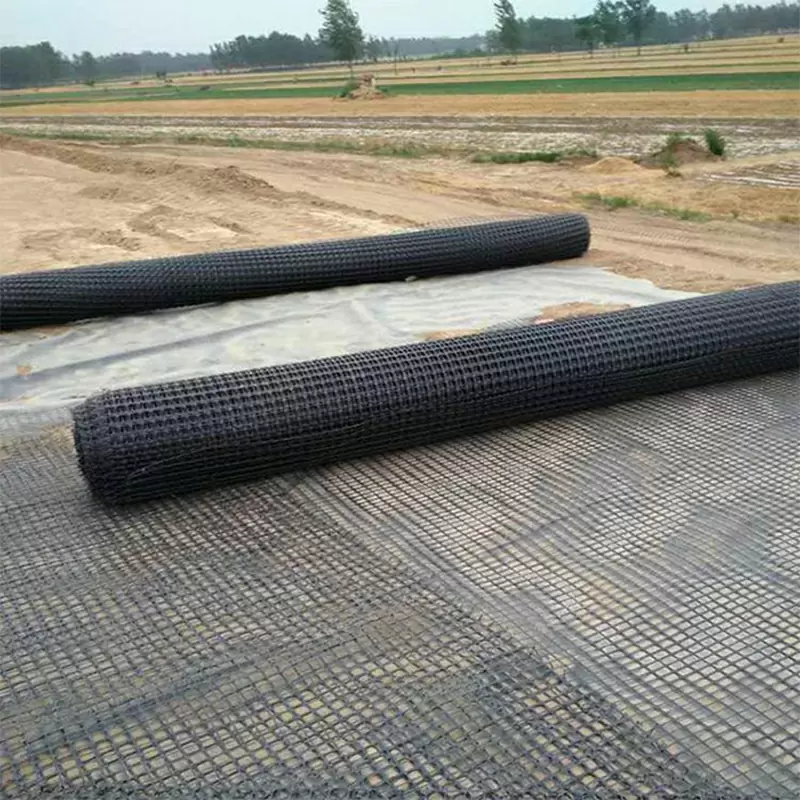

Reinforcement of soft soil roadbed , imigation channels and water dams.




Features:

High strength, small deformation, homogenous structure, easy for construction etc.

Usage:

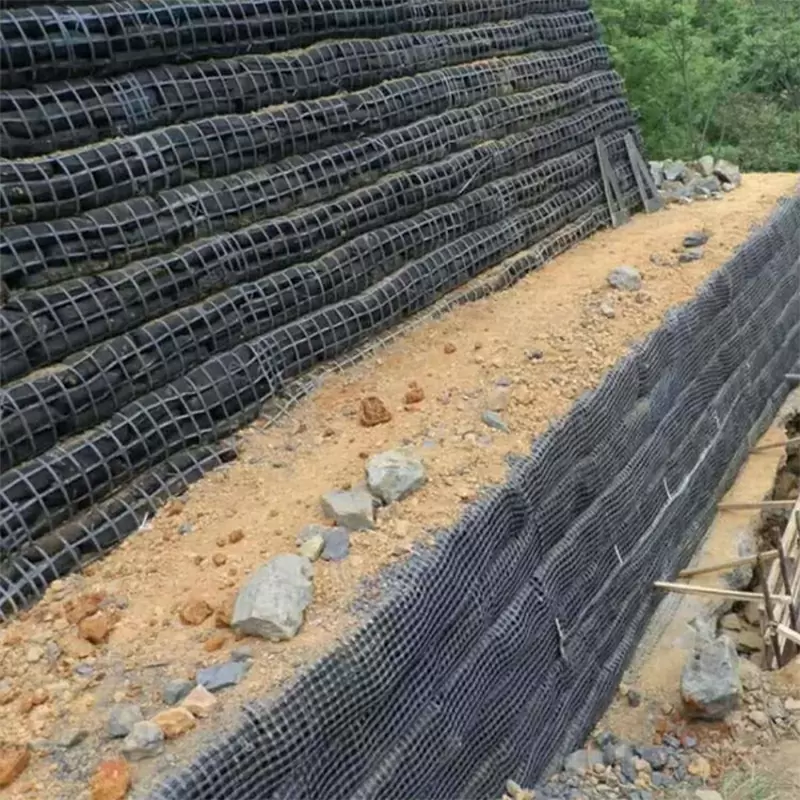

Make reinforcement treatment for kinds of soft soil foundation and strengthen shearing resistance of the soil

body, used in reinforcement of retaining wall and widening of old road. It is also used as protect-support net

in the coal mine when layer mining of thick coal seam and high thick coal seam, and support of road way in

the coal mine.
