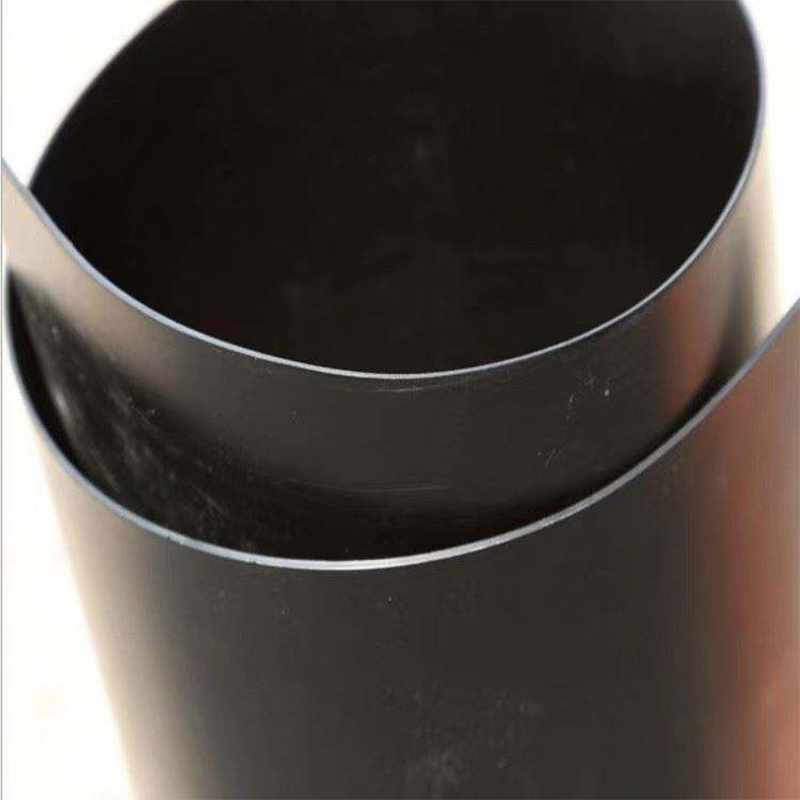

0.5mm to 2.8mm Hdpe smooth geomembrane anti leakage tear resistance fish pond liner

0.5mm to 2.8mm Hdpe smooth geomembrane anti leakage tear resistance fish pond liner
The anti-seepage geomembrane has good flexibility , vanous specifications ,and various laying fomms to meet different requirements They are widely usedfor solid waste landfills , waste containment , aquaculture and water treatmentsystem , etc.
Phone : +86 17564509768
Email : sales@drgeomembrane.com
Whatsapp : +86 17564509768
Product Description

Industry-specific attributes


  Warranty

  1 Year

  After-sale Service

  Online technical support

  Project Solution Capability

  total solution for projects

  Application

  Outdoor

  Design Style

  Industrial


Other attributes


  Place of Ongin

  China

  Type

  Geomembrane

  Brand Name

  Dingrun

  Product Name

  Smooth geomembran

  Material

  HDPE LDPE LLDPE

  Color

  Black White Green Blue

  Keyword

  Geomembranes

  Length

  50-100m, or customization

  Width

  2m-8m

  Thicknes

  0 . 2mm-3mm


PRODUCT PARAMENTERS/geomembrane data

Item

Index

The thickness(mm)

0.5

0.751.001.251.52.002.25
3.00

Tensile yield strength (longitudinal and transverse)N/mm

≧8

≧11≧15≧18≧22≧29≧37≧44

Tensile fracture strength (longitudinal and transverse)N/mm

≧13≧20≧27≧33≧40≧53≧67≧80

Yield elongation (longitudinal and transverse)%

≧12

Elongation at break (longitudinal and transverse)%

≧700

Right-angle tearing load (longitudinal and transverse)N

≧58

≧93

≧125

≧160

≧190

≧250

≧315

≧375

Puncture resistance N

≧160

≧240

≧320

≧400

≧480

≧640

≧800

≧960

Stress cracking under tensile load (dead-load tensile method with notch)h

≧300

Carbon black content%

2.0~3.0

Oxidation induction time(OIT)


Induction time of oxidation at atmospheric pressure≧100

Induction time of high pressure oxidation≧400

85℃ thermal aging (OIT retention rate at atmospheric pressure after 90 days)

≧55

Uv resistance (OIT retention rate after 1600h UV irradiation)

≧50


Application

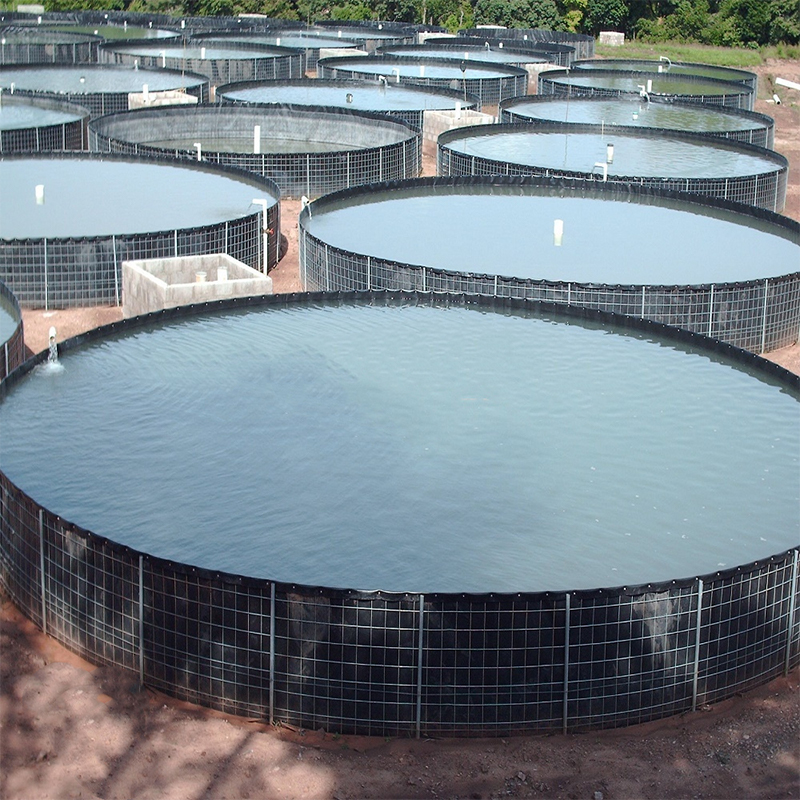

Aquaculture Industry

For example , industrialized aqua -culture ponds , fish ponds , shrimppons lining , sea cucumber circleprotection , etc .

Water Conservancy

For example , seepage prevention,leakage stoppage , and reinforcement of rivers . lakes , reservoirs and slope

protection , etc.

Municipal Engineering

For example , tunnel , subway , underground works of buildings and roof cisterns , impervious roof garden , lining

of sewage pipes,ete.

Petrifaction

For example , anti seepage of oil storage tanks in chemicalplants, refineries and gas stations , lining of chemical

reaction tank and sedimentation tank , secondary lining , etc.





HDPE geomembrane is the preferred product for a wide range of containment lining applications . Hdpe

geomembrane liner is cost-effective , excellent durable and exceptional chemical resistance to many

different solvents , it is the most widely used lining material for exposed applications in the world.
