geotextile Drainage 3D Geomat For Slope Protection Erosion Control

geotextile Drainage 3D Geomat For Slope Protection Erosion Control
Erosion control mat 3d geomat 3d waterstop control geomat
Geomat Erosion Control is a three-dimensional mat made from extruded and bi-oriented polyethylene grids.
Phone : +86 17564509768
Email : sales@drgeomembrane.com
Whatsapp : +86 17564509768
Product Description

Industry-specific attributes


  Warranty

  1 Year

  After-sale Service

  Online technical support

  Project Solution Capability

  graphic design

  Application

  Other

  Design Style

  Modern


Other attributes


  Place of Ongin

  China

  Type

  Other Earthwork Products

  Brand Name

  Dingrun

  Product Name

  3D Geotextile Mat

  Material

  polyethylene

  Color

  Black , green

  Keyword

  Geotextile Mat

  Length

  25-50m, or customization

  Width

  Normal 2m,or customization

  thickness

  10-16mm

  Function

  Erosion Control

Specification


TypeUnitsBEM2BEM3BEM4BEM5
Layers
2345
Unit weightg/m2220260350430
Thickness
mm
10121416
Tensile strengthkN/m0.81.423.2
Elongation%<30
Color
Black / Green
Carbon Black%2
Raw Material
UV resistance HDPE
Roll sizemxm2 x 502 x 502 x 302 x 25
20GP Loadingm24500400035003000
40’HQ Loadingm210000800090006500



Product Features:

Good flexibility, corrosion resistance, acid and alkali resistance, oxidation resistance, and has good permeability,

filtration and isolation performance, convenient construction.

Scope of application:

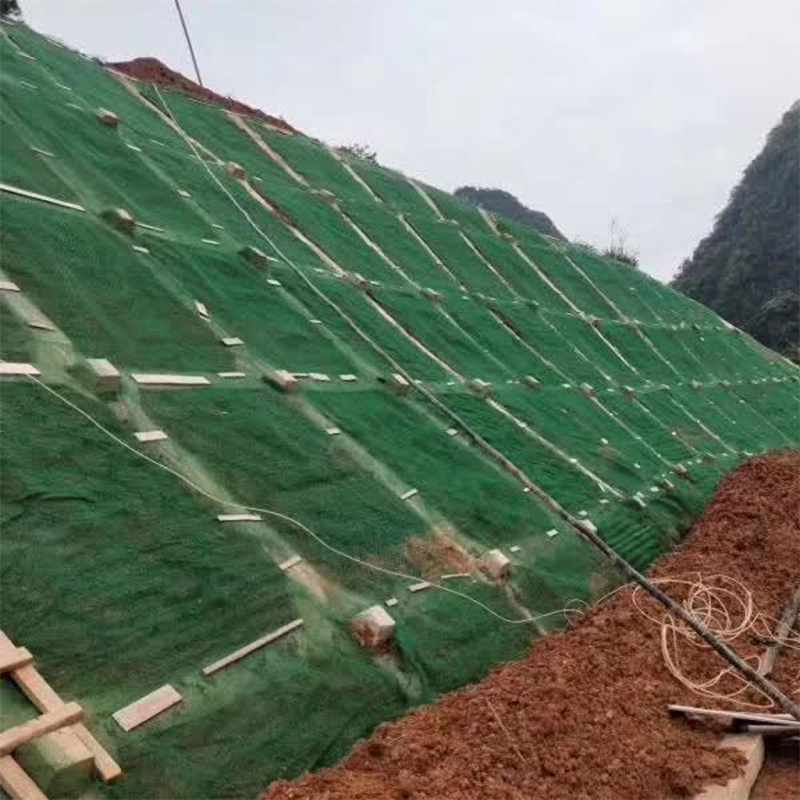

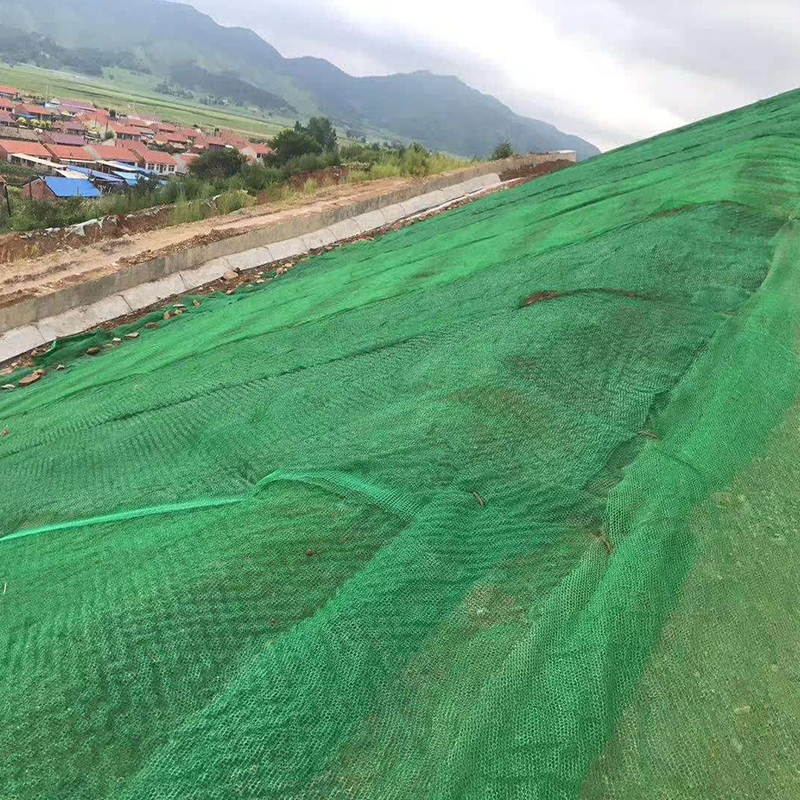

Widely used in water conservancy, hydropower, highways, railways, ports,airports, sports venues, tunnels, coastal

beaches,reclamation, environmental protection and other fields.




Erosion control mat 3d geomat 3d waterstop control geomat

Geomat Erosion Control is a three-dimensional mat made from extruded and bi-oriented polyethylene grids. The

underside of the mat is made flat to provide even contact with the prepared soil surface.  The upper surface is

made cuspated to provide excellent soil retention.  The three dimensional structure retains a layer of top soil and

 anchors the growing grass roots thus providing a stable surface highly resistant the forces of rain drops and run

off.





It is a kind of high polymer synthetic material made of 3D mesh structure , quality of a material is loose , flexible ,

with 90% of the space can fill soil , sand ,the roots of the plants are grown through them balanced , the growth of

grass make gauze pad , turf , soil surface firmly together , because the plant roots can be extended into the surf-

ace of the 30-50 cm ,so the formation of a solid layer of green composite coating.
