Geomembrane Hdpe sheet welding machine
Geomembrane Welding Machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as PE,PVDF,LDPE, PVC, HDPE, EVA, PP and HDPE,EVA,PP.
Phone : +86 13386403495
Email : sales@drgeomembrane.com
Whatsapp : +86 13386403495
Product Description
 Voltage: 220V/110V
 Frequency: 50/60Hz
 Power: 1800W
 Welding Speed: 0.5-5 m/min
 The temperature of Heating up: 0~450°C
 The thickness of welding material: 1.0mm~3.0mm
 Welding width: 15mm×2
 Interior Cavity: 15mm
 Seam strength: ≥85% base material
 Overlap width: 12cm
 Weight: 13kg
 Insulation class: class II


 SWT-NS900 Parameter Settings Reference Speed Reference Temperature Reference Pressure Value (When upper and lower pressure roller in 0 pressure state)
 HDPE 1.0mm 3.0-4.5 380-430 Counterclockwise adjustment is recommended at 4
 HDPE 1.5mm 2.5-4.0 380-430 Counterclockwise adjustment is recommended at 3
 HDPE 2.0mm 2.0-3.5 380-430 Counterclockwise adjustment is recommended at 2
 HDPE 3.0mm 1.5-2.5 380-430 Clockwise adjustment is recommended to be 1-2

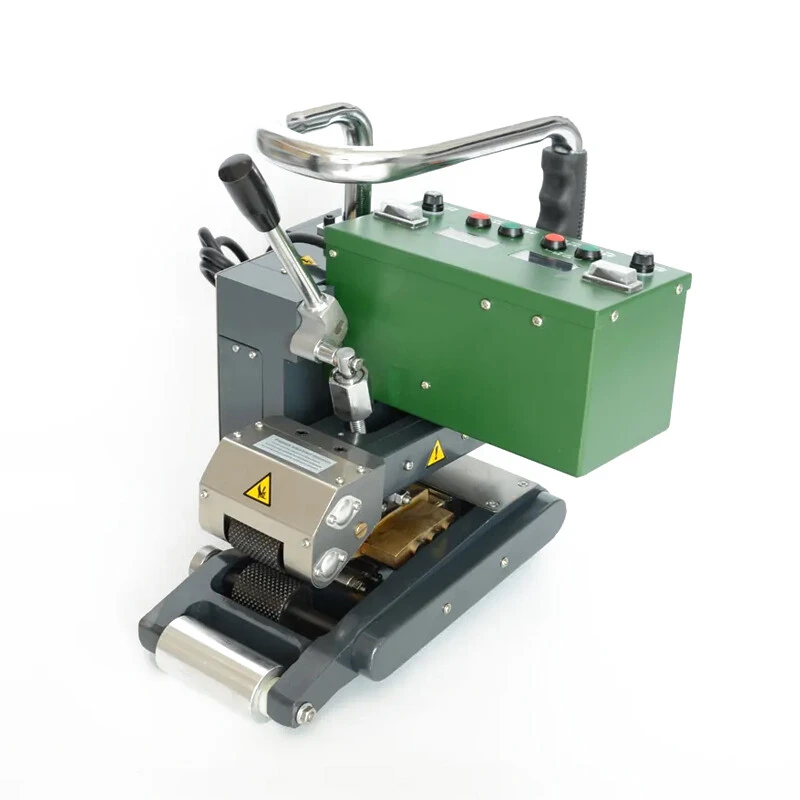

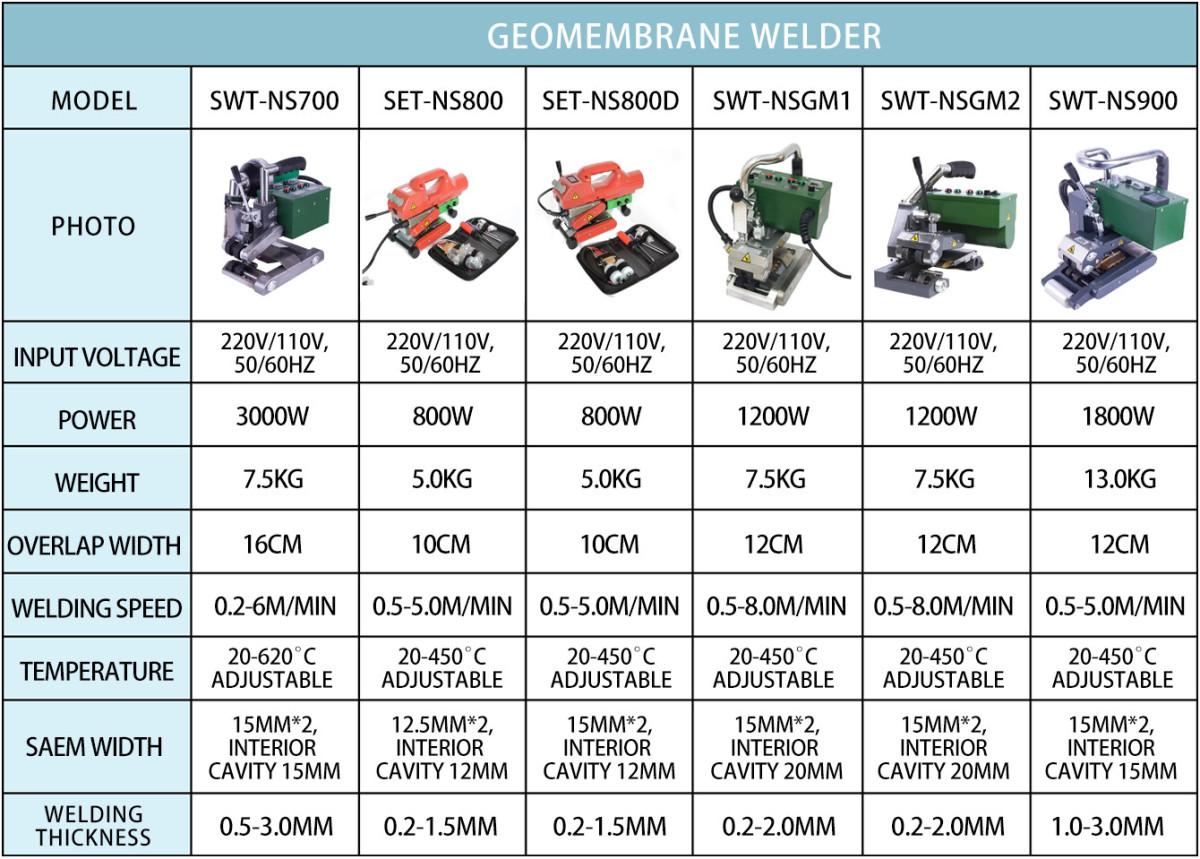

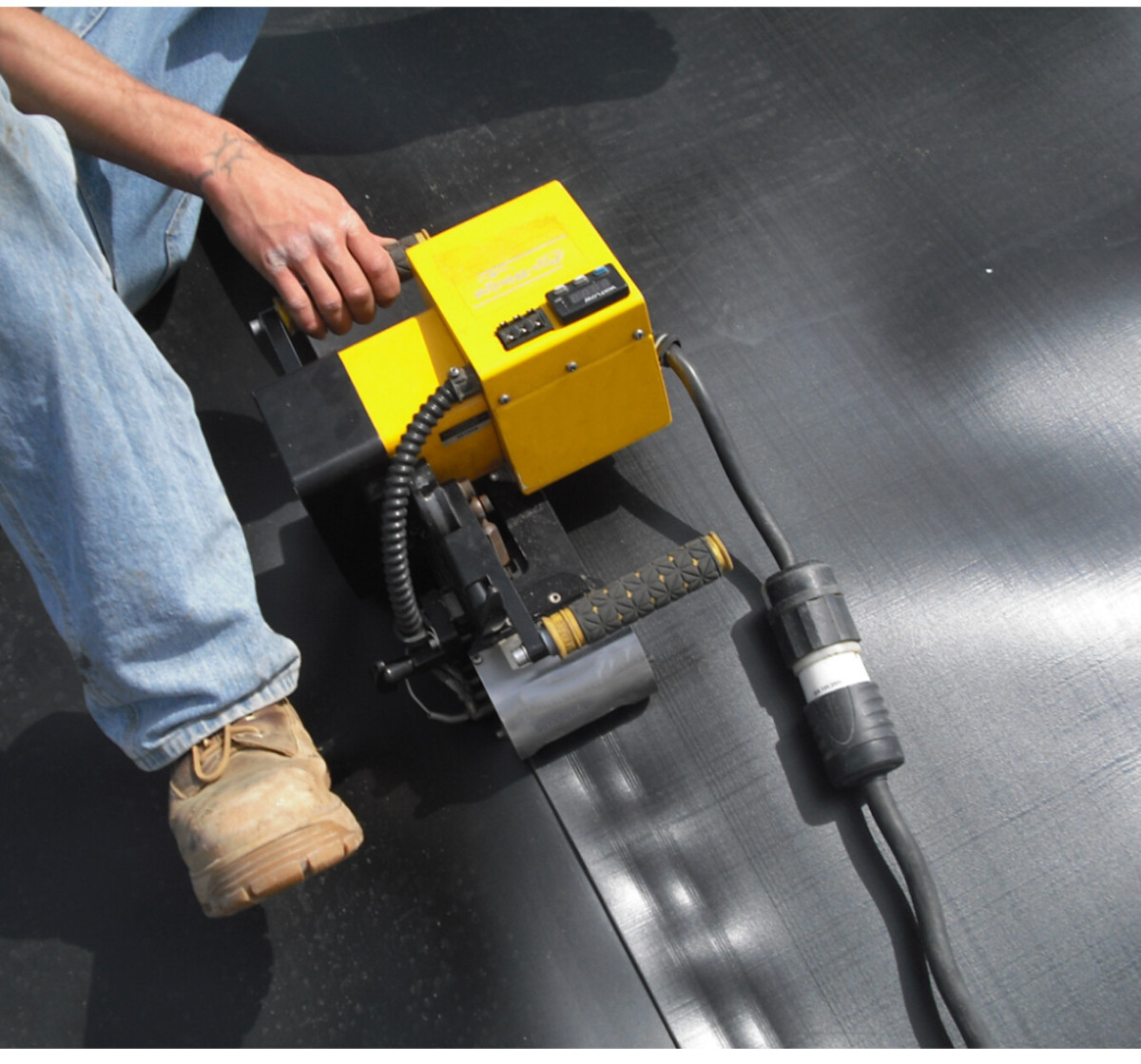

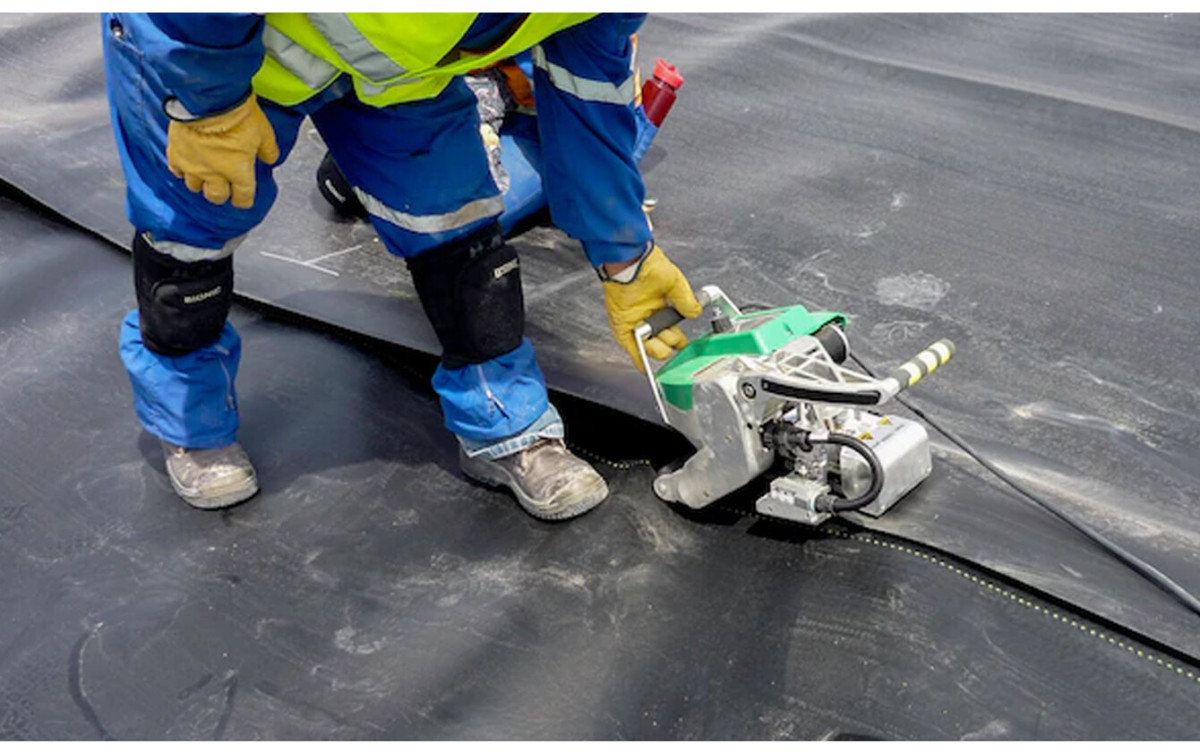

SWT-NS900 Hot Wedge Welding Machine

SWT-NS900 HDPE geomembrane hot air wedge welding machine, handheld plastic extruder welding machine

Introduction:

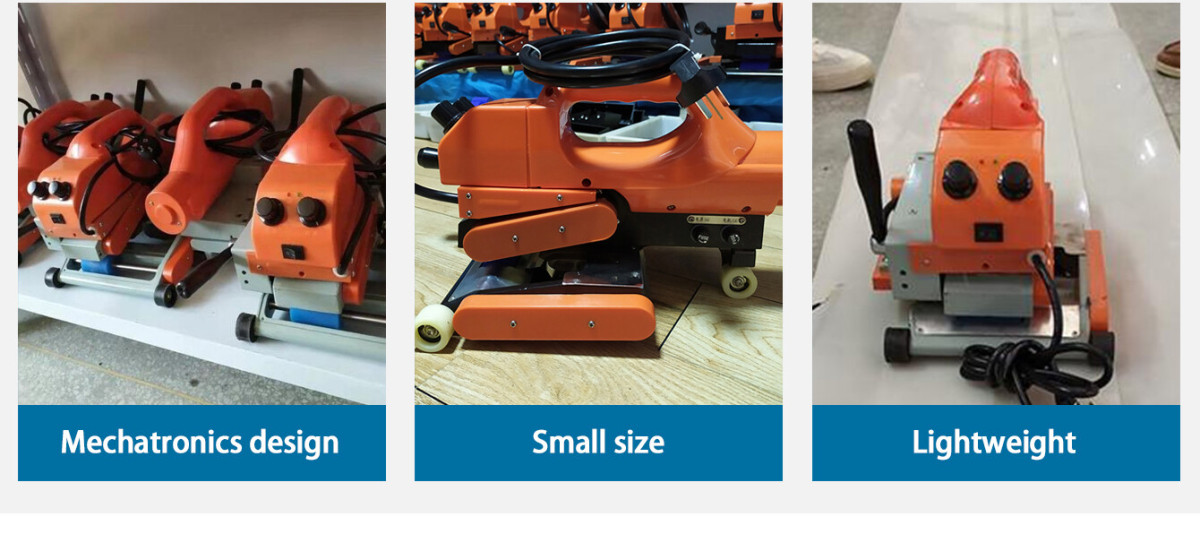

SWT-NS900 adopts advanced hot air heating system. It is small in size, light in weight, and fast in speed, and can improve welding quality even in corrosive materials

and harsh working environments. This machine is designed specifically for waterproofing projects such as tunnels, subways, water conservancy, aquaculture, biogas

plants, landfills, chemical mines, sewage treatment, roof construction, etc.

Tips:

1. This machine adopts steel pressure roller welding, suitable for hot air welding.

2. We have multiple models of welding machines. If you have any customization needs, you can contact us directly. We have a professional technical team.

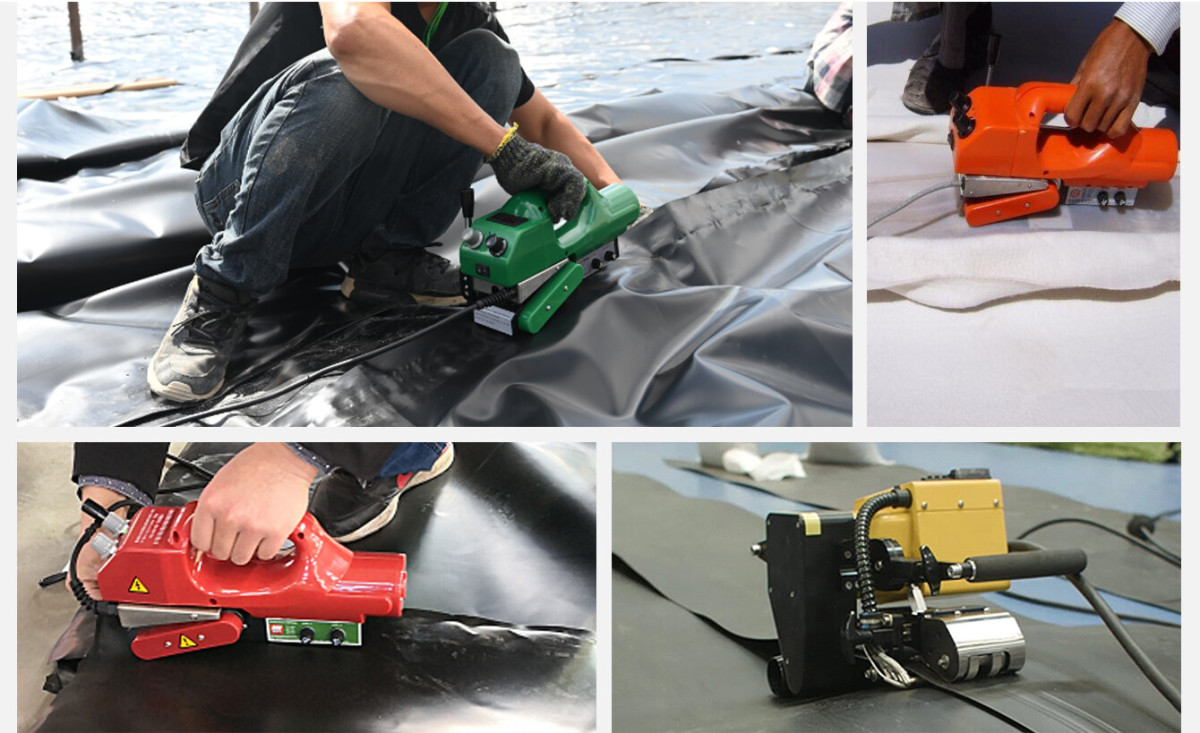

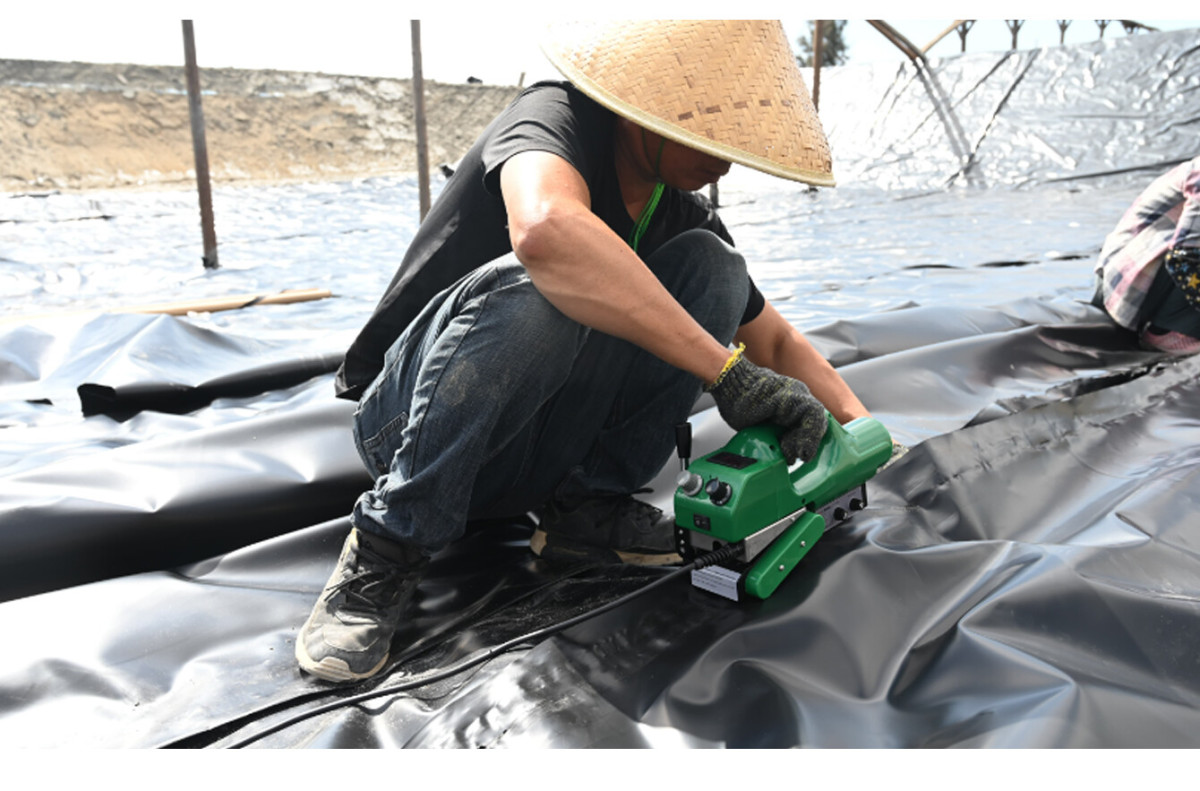

Application of Hot Wedge Welding Machine:
Geomembrane Welding Machine can weld geo-membrane of various thickness and are applicable for welding of all thermal-fused material such as PE,PVDF,LDPE, PVC,

HDPE, EVA, PP and HDPE,EVA,PP.

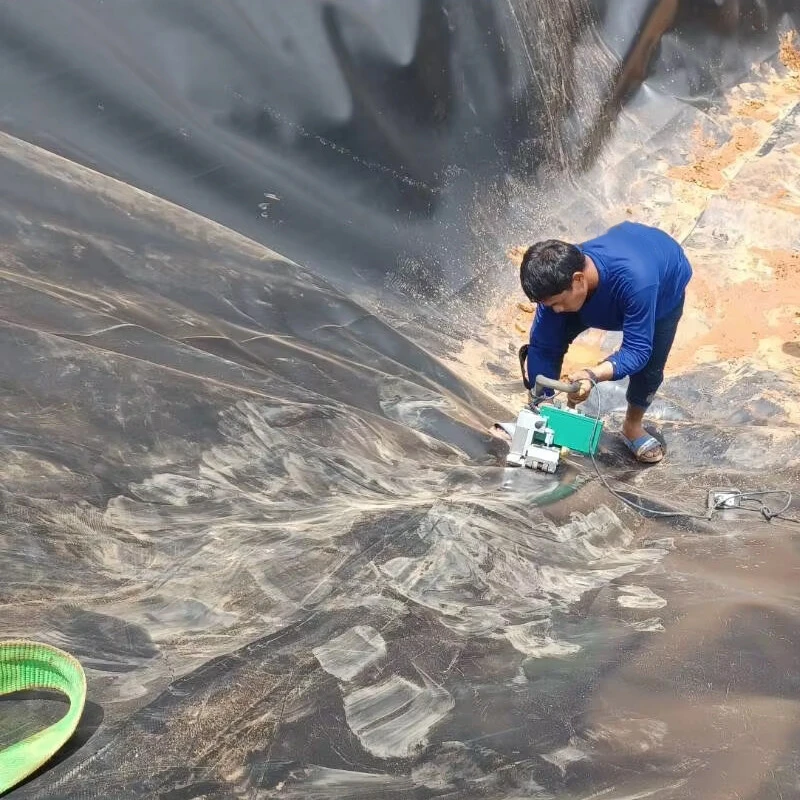

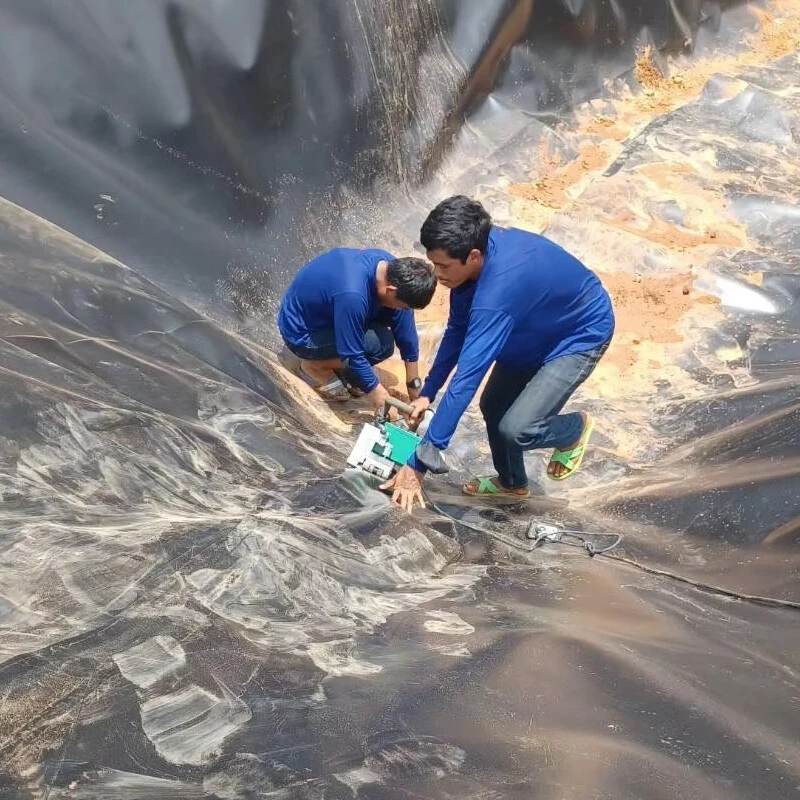

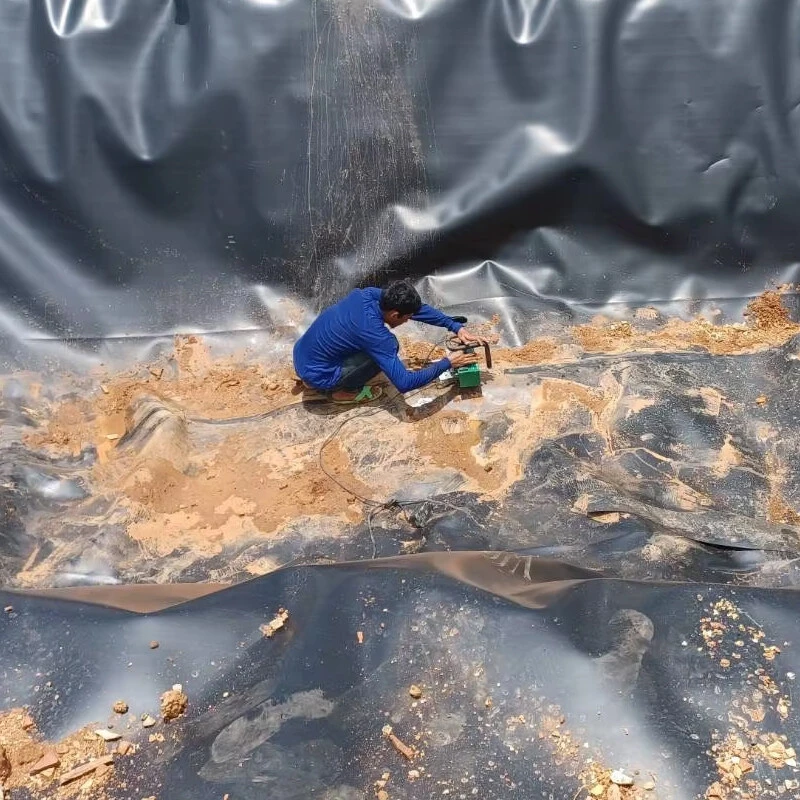

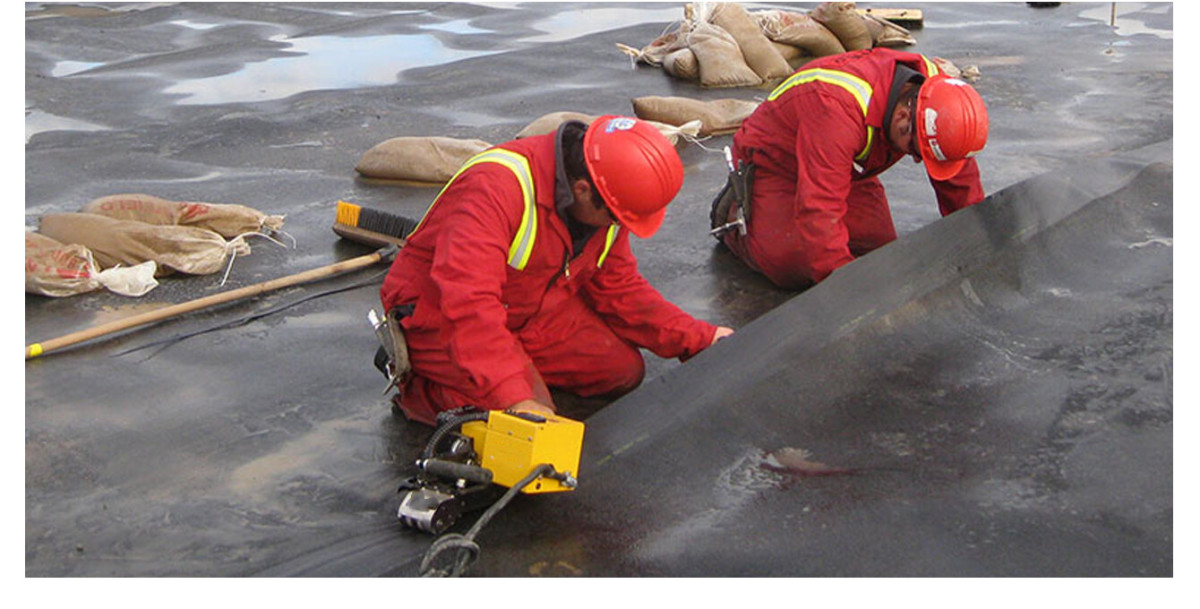

Geomembrane Welding equipments are designed for water conservancy,aquaculture,landfills,chemical mining,sewage treatment,roof construction, and other waterproofing

projects.
